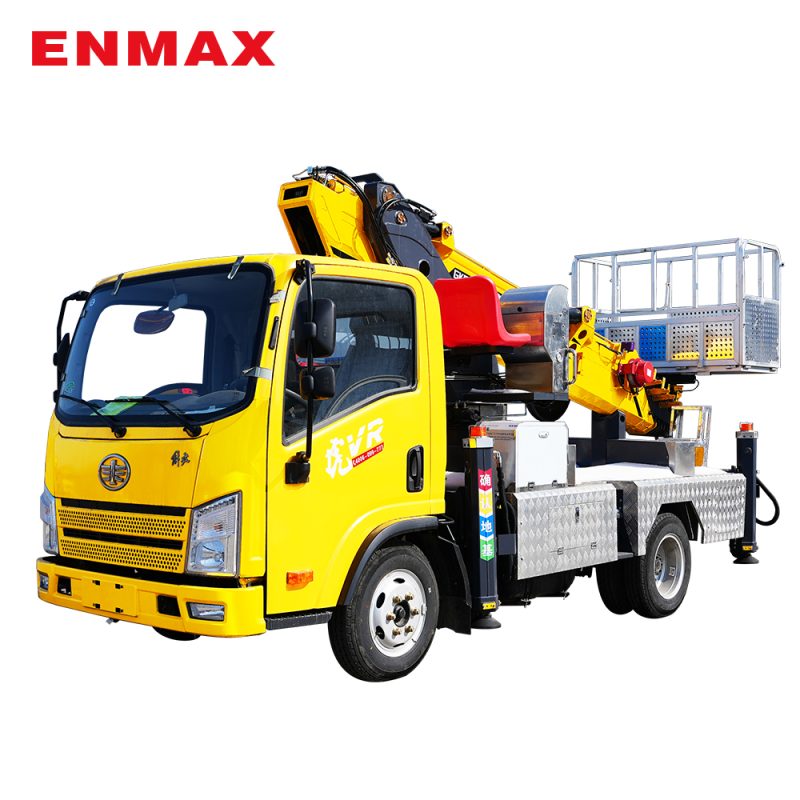

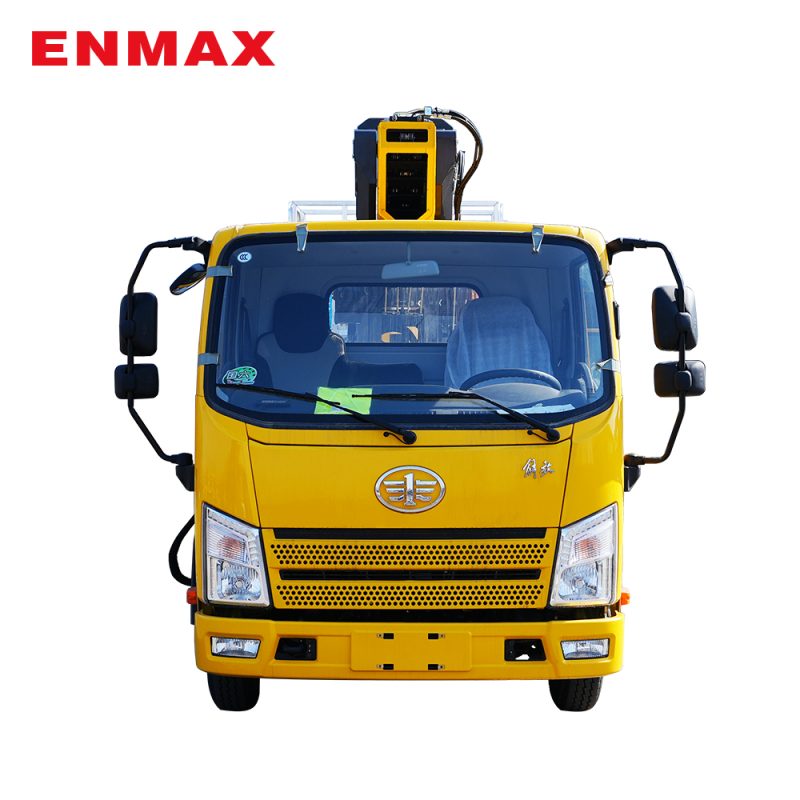

30m Aerial Work Vehicle

Effectively improve the climbing speed; the vehicle hydraulic system adopts a new design, easy to operate, high work efficiency, compound and smooth action, stability, reliability, flexibility and comfort

Factory direct sales Training upon arrivalThree-year warrantyBrand certificationGoods arrival guarantee
WhatsApp
Product Details

Optional configuration: upper air conditioning, lower air conditioning, weighing device, torque limiter, wireless camera, hanging
basket, air cushion seat

Product features: Equipped with a central rotator, the turntable can rotate 360 degrees at will. Equipped with a planetary
reduction mechanism, the rotation is faster and smoother. Equipped with a hydraulic heat dissipation system to reduce oil
temperature and improve efficiency; The driving is equipped with high and low speeds, steering wheel assistance, and air brake,
making driving the vehicle easier and more flexible.

Jiaqing Heavy Industry’s self-made 6T configuration table
Brand
JQDC
Rotary mechanism
Secondary planetary
steering
Chassis Model
Made by the manufacturer
Outrigger
5 fully hydraulic
outriggers
total mass
7100KG
Outrigger span (transverse)
4950mm
Full crane size
6100*1950*2600mm
Outrigger span (longitudinal)
3800mm
wheelbase
2100mm
Protective devices
two-way hydraulic lock
Maximum rated lifting
capacity
6000kg
Work lights
two
maximum lifting height
21m
hydraulic pump
single pump
engine model
4102motor
Dual use of oil and electricity
11KW-6 pole copper core motor
power
64KW
Rotation radius
1.7m
horsepower
90 horsepower
Frame size
300mm*150mm
gearbox model
Wanliyang gearbox (high
and low speed)
top of posterior displacement
standard configuration
tire
750-16
Lifting operation mode
Pushrod operation
brake system
Air brake（ABS）
Rod output form
Synchronous scaling
Steering mechanism
Hydraulic directional
assistance
Type of boom structure
4m * 7 section arm
Main lifting mechanism
8 ton winch
Big arm size
500mm*300mm
Slewing bearing
1.05 meter turntable
