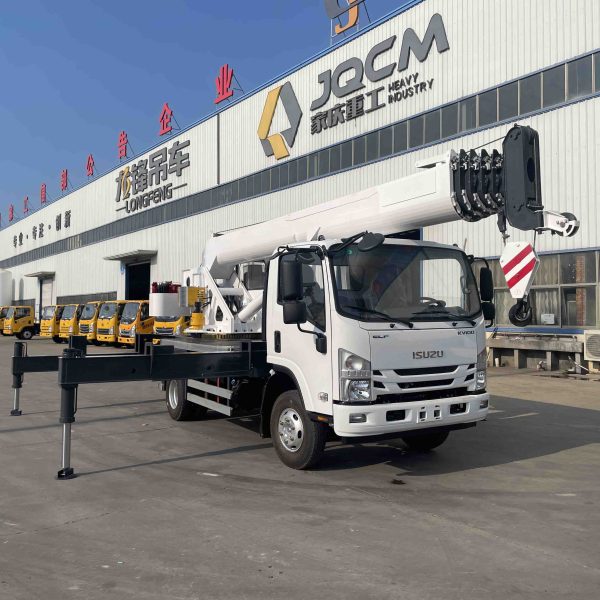

Engineering Equipment ISUZU Hydraulic Mobile 8 Ton Crane

Effectively improve the climbing speed; the vehicle hydraulic system adopts a new design, easy to operate, high work efficiency, compound and smooth action, stability, reliability, flexibility and comfort

Factory direct sales Training upon arrivalThree-year warrantyBrand certificationGoods arrival guarantee
WhatsApp
Product Details

Product features: The crane is equipped with high and low speeds; original air conditioner and driving recorder; PTO power output system can stabilize the engine fixed speed and keep the pressure and flow of each lifting hydraulic system constant; Fast 8-speed gearbox, high first gear ratio, strong overall power performance; the hydraulic system of the whole vehicle adopts a new design, which is easy to operate, high working efficiency, smooth and comprehensive performance of movement, stable and reliable, flexible and comfortable.

brand
JQCM
Rotary mechanism
Secondary planetary steering
Chassis Model
ISUZU
Outrigger
5 fully hydraulic outriggers
Full crane size
9050*2080*3060
Outrigger span (transverse)
5080mm
wheelbase
3300mm
Outrigger span (longitudinal)
4360mm
Maximum rated lifting capacity
8000KG
Protective devices
two-way hydraulic lock
maximum lifting height
30M
Work lights
two
engine model
D4B1 ( Electric
Injection Intercooling Boost)
hydraulic pump
Single/dual pump
gearbox model
Wanliyang gearbox (high and low speed)
Dual use of oil and electricity
15KW-6 pole copper core motor
tire
750-R16
Rotation radius
2.2m
brake system
Air brake (ABS)
Frame size
300mm*150mm
Steering mechanism
Hydraulic directional assistance
top of posterior displacement
standard configuration
Main lifting mechanism
8 ton winch
Lifting operation mode
Pushrod operation
Auxiliary lifting mechanism
7 ton winch
rod output form
Synchronous scaling
Maximum lifting capacity
8000KG
Slewing bearing
1.05 meter turntable
Type of boom structure
6m 6 knots/7m 5 knots (inner rope)
engine power
95KW (130 horsepower)
Outrigger extension length
Double 1.5 meters
Total length of lifting arm
35/36 meters
Horizontal distance of the lifting arm
15 meters (1 ton)
